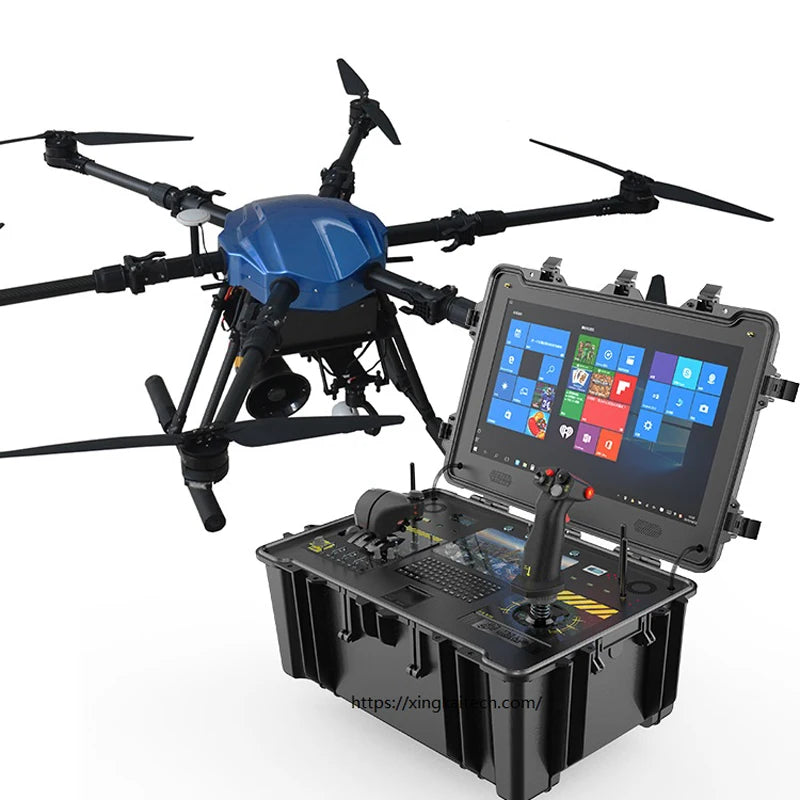

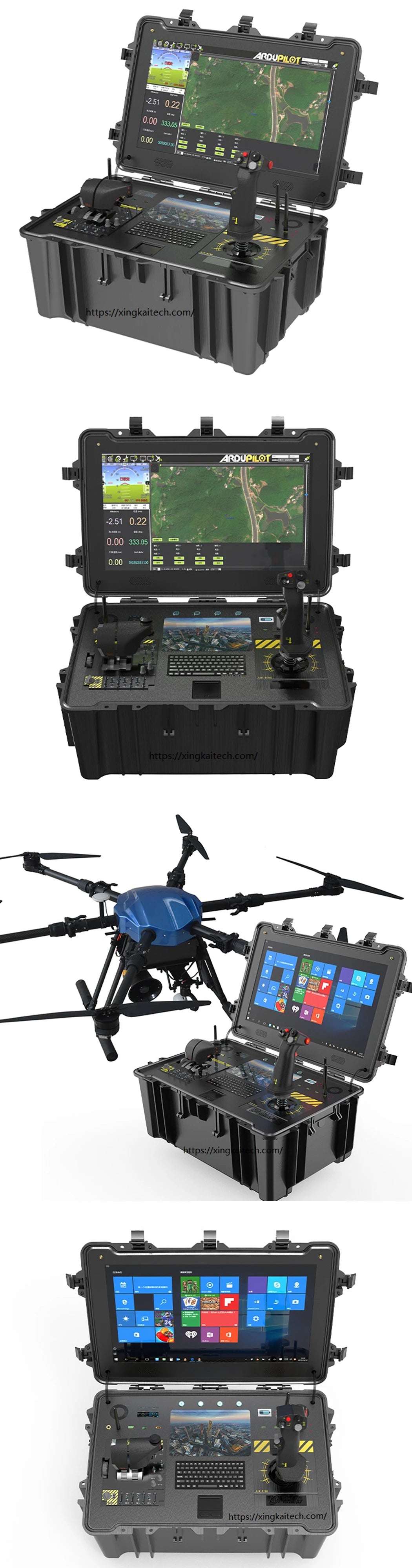

Drone with Remote Control and Screen ground Control Station

Drone with Remote Control and Screen ground Control Station

$34,973.64 USD
$43,717.05 USD $34,973.64 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Brand Name: NoEnName_Null,Xingkaitech

Hign-concerned Chemical: None

Origin: Mainland China

Drone with Remote Control and Screen ground Control Station

Product Description
Product Name
XK-G403
Function
Ground Control Station for Unmanned Aerial Vehicles
Package
Packed in a professional shipping box


1. Product performance description

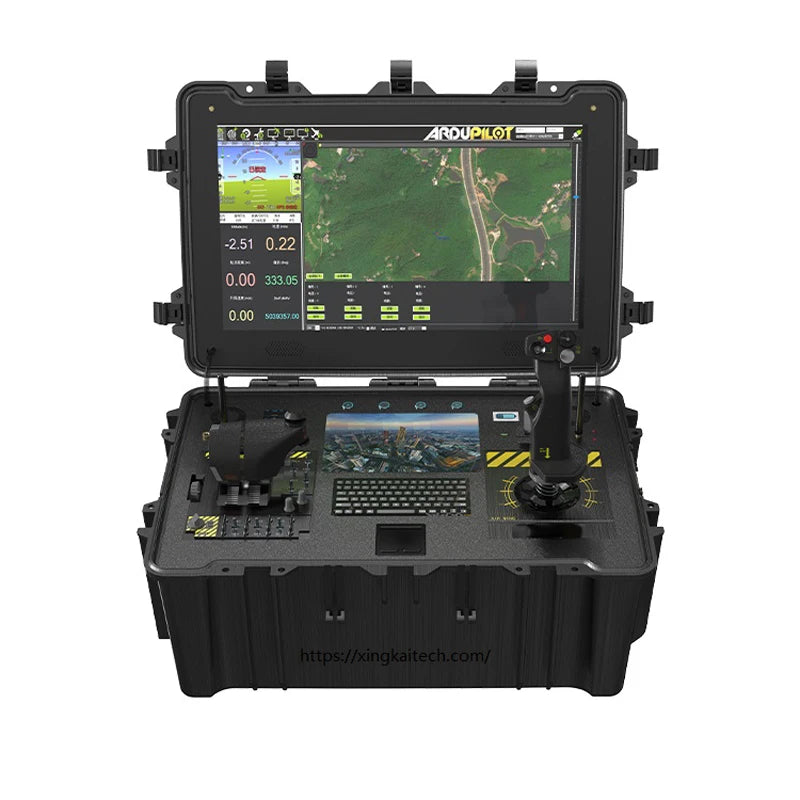

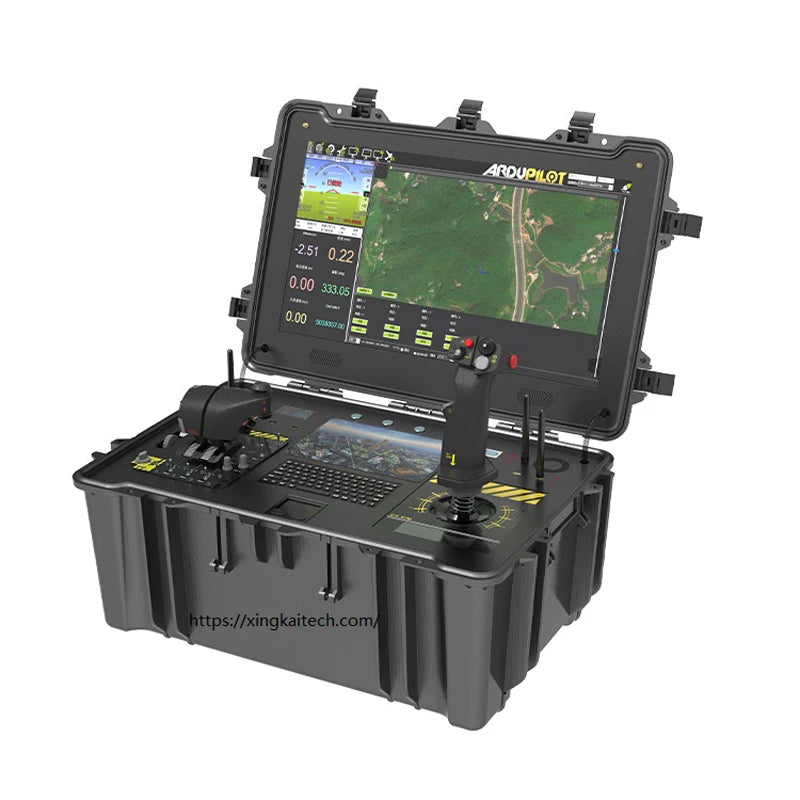

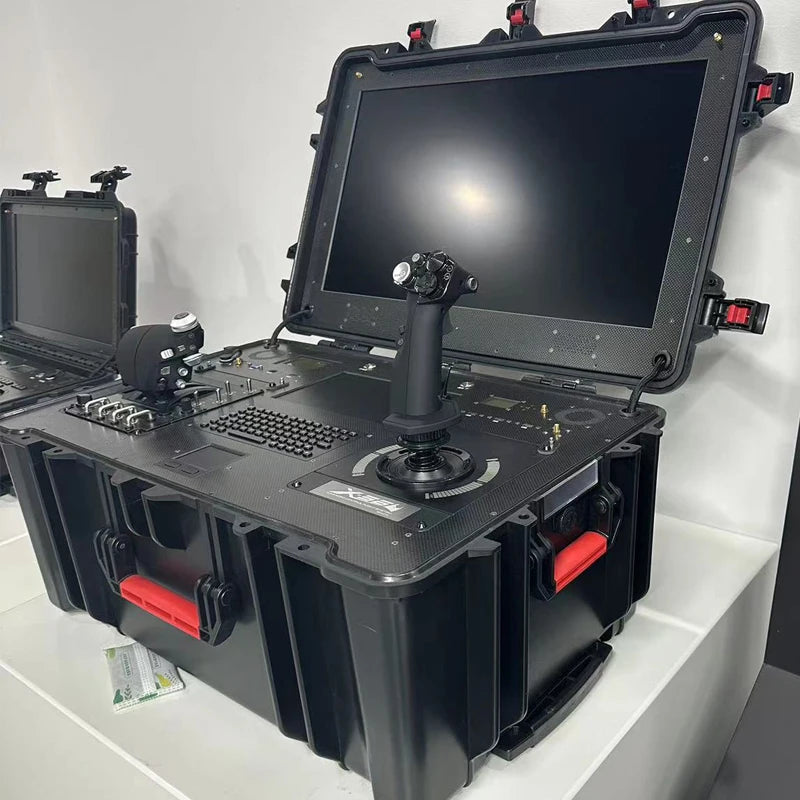

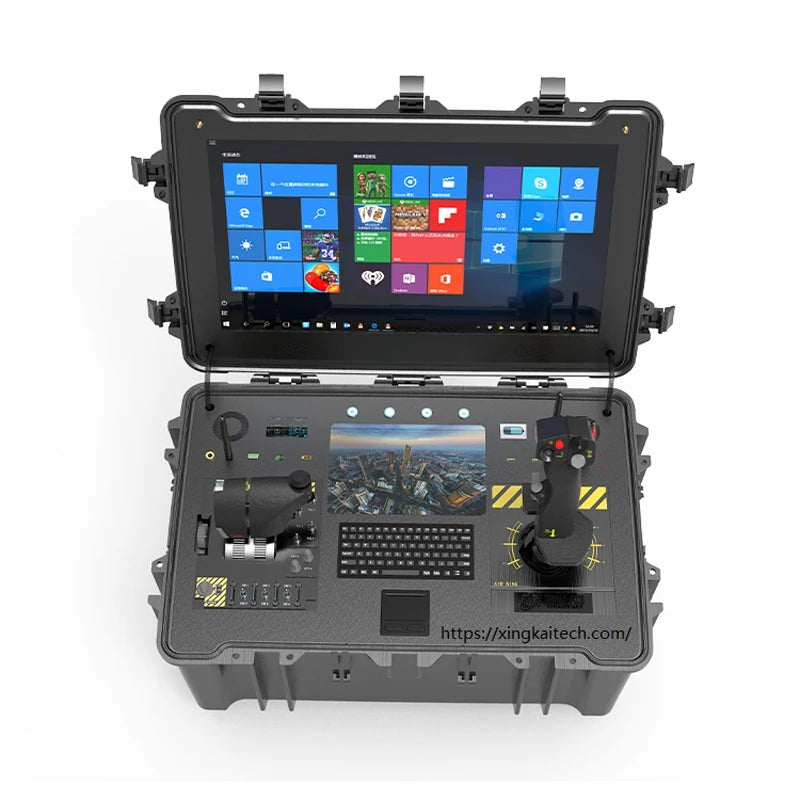

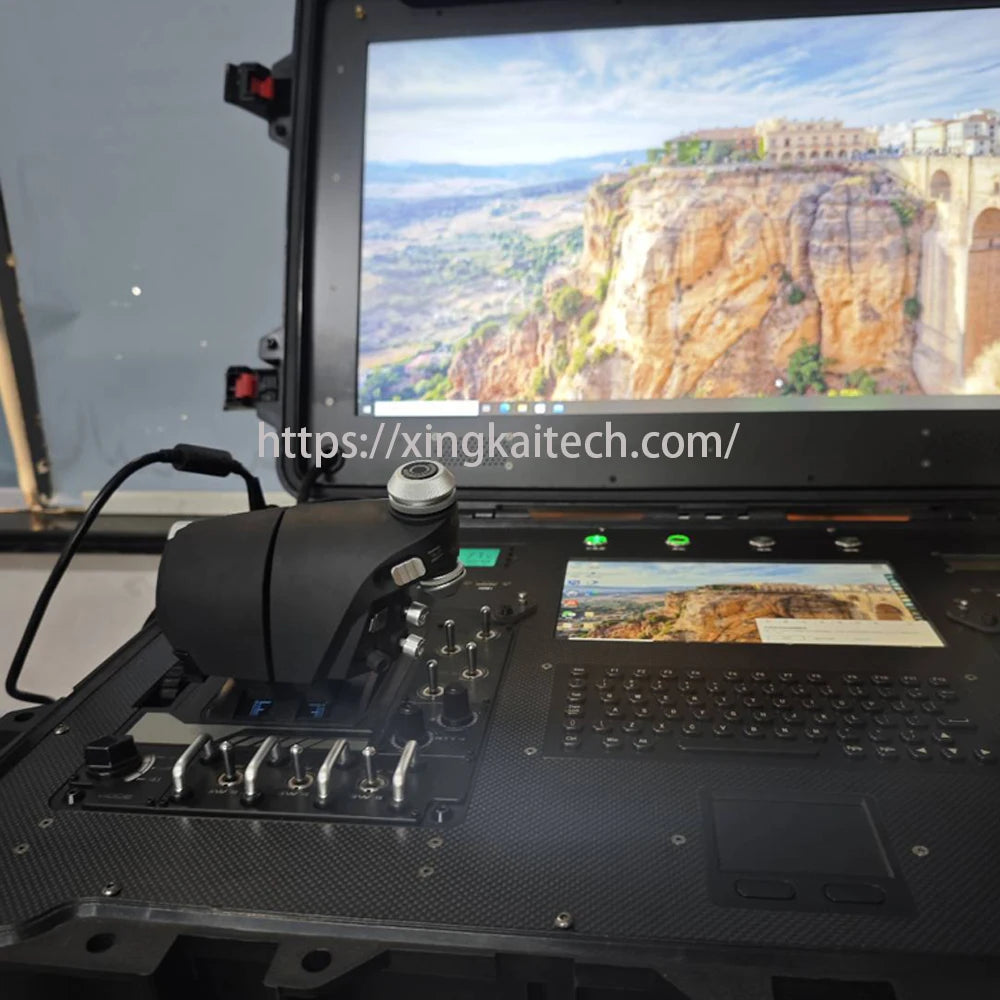

XK-G403 is a portable ground control station with rugged ground computer,integrated industrial grade PC system and data link remote control system. XK-G403 provides the function such as mission planning, attitude control, payload control,remote monitoring, real-time video display, etc. The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
Technical Parameter

Box Type
Military three-proof safety box
Overall Dimensions
556MM(L)*358MM(W)*230MM(H)
Weight
15KG
Shell material
PVC
IP rating
IP67
Working Temperature
-20°C~ 60°C
Colour
Matte black
Portable Features
Built in pull rod, external lifting cover
Battery and endurance
4 hours
Operation Panel

Panel material
3K Carbon fiber plate
Interface support
USB*2,DC IN,HDMI,RJ45
Feeder and interface
N,SMA
Human-computer interaction
Industrial mouse button suit
Switch parameters
Main power supply, power on key, link power supply
Others
Industrial cooling fan
Industrial Control Host

Processor
I5 6500T
Operating system
Windows 10
Memory
8G
Hard disk
256G
I/O Interface
USB,Network port,Serial port,HDMI
Left and right dual display

Dimensions
20 inches
Resolution ratio
1920*1080
Screen scale
16:9
Backlight type
LED
Maximum brightness
1000nit(Automatic induction regulation)
Input interface
HDMI
Remote lever and button functions

Joysticks
*2 Industrial joystickswith Hall's sensors
Paddle
*4
Knob
*2
Push-button
*4
Communication protocol
SUBS,USB HDI
Battery & Power

Display contents
Current voltage, current,current residual capacity, power, etc
Management system protection
Overcurrent protection,overvoltage protection, lowvoltage protection, overcapacity protection
Battery protection
Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection
Endurance
4 hours
