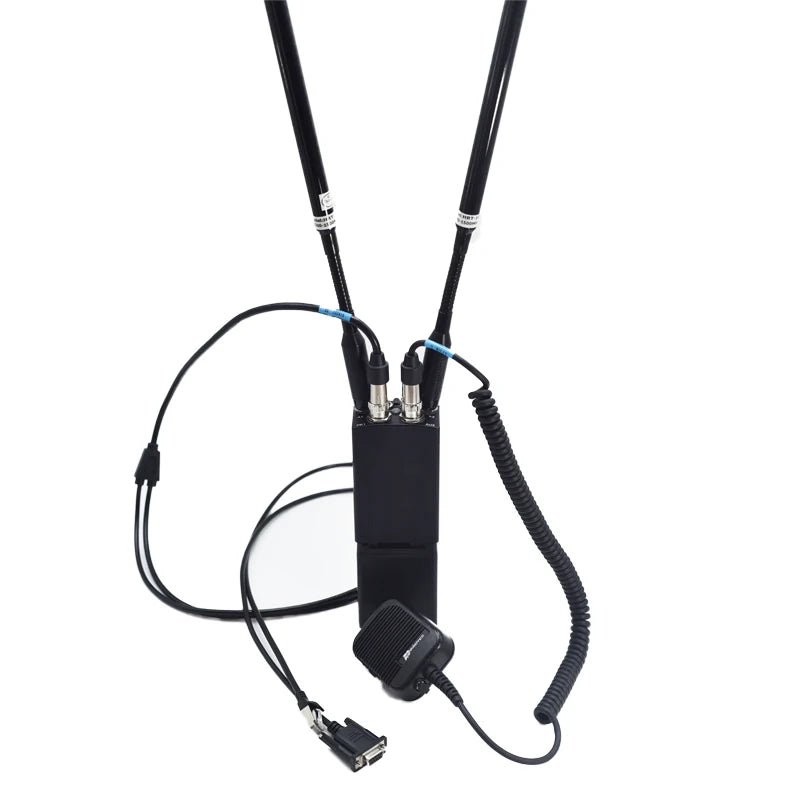

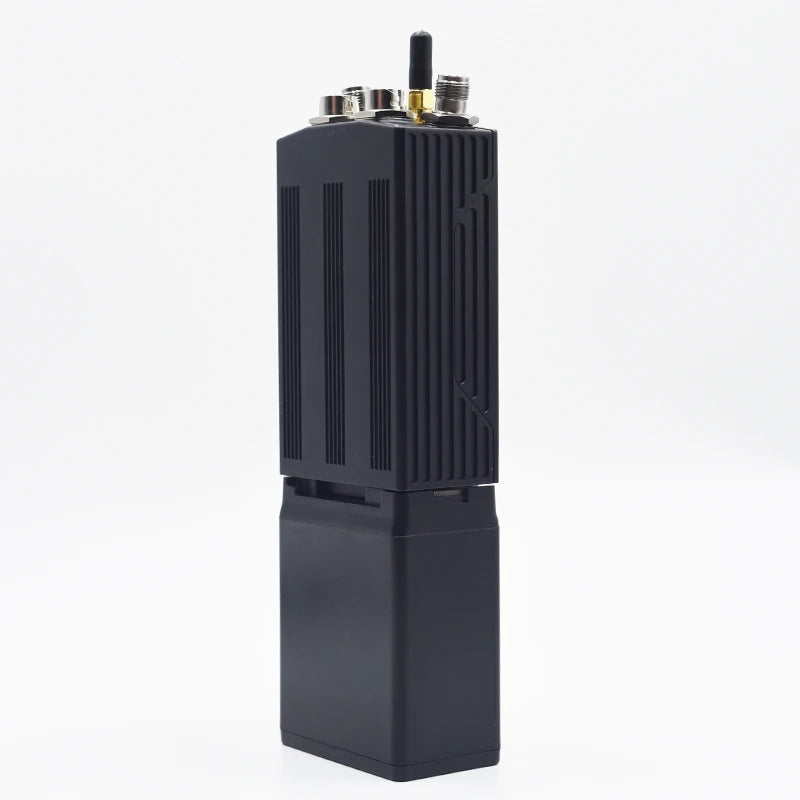

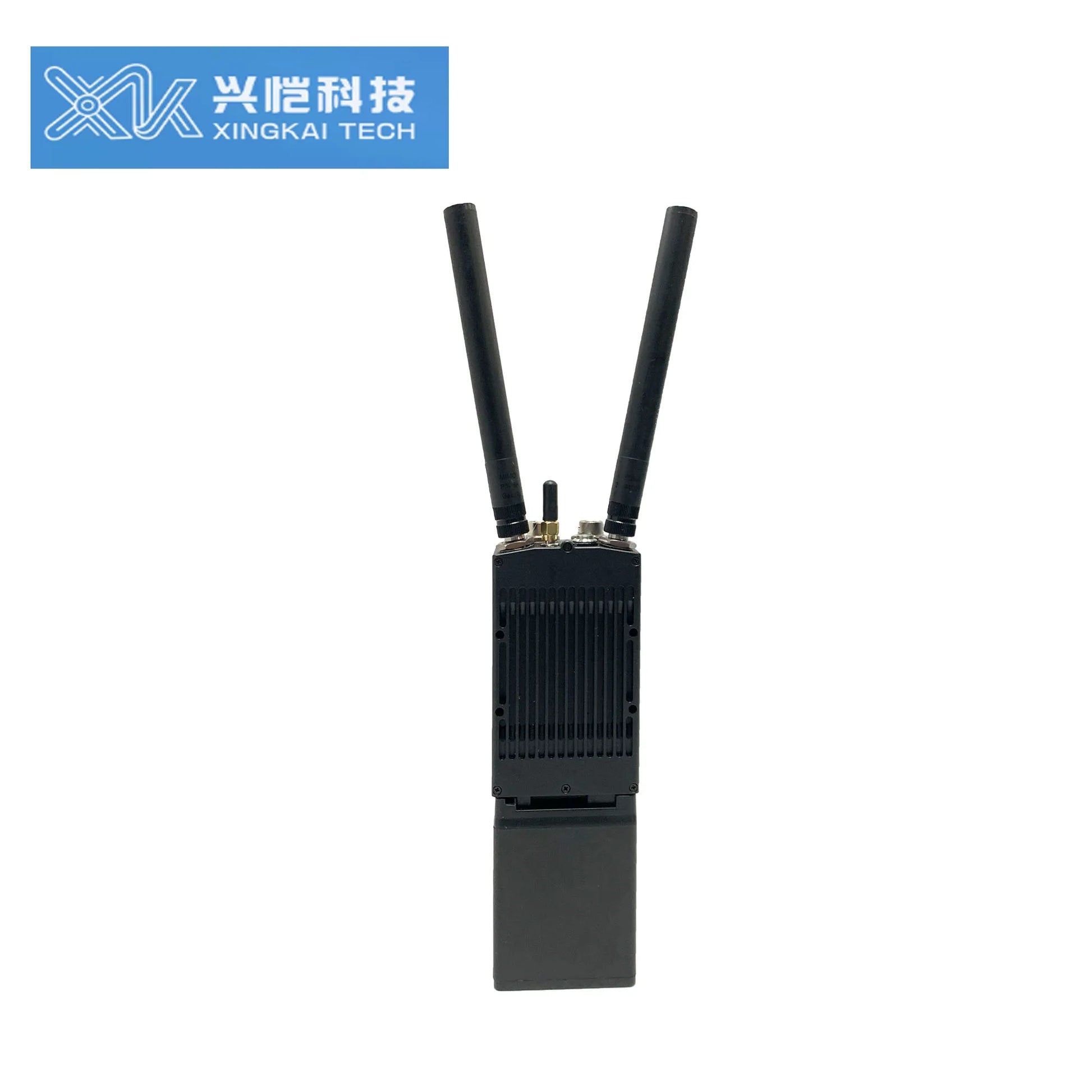

Long Range Drone Definition Transmitter Wireless Mesh Network Communication Radio Mesh Wifi Repeater Wave Wireless Portal Radios

Long Range Drone Definition Transmitter Wireless Mesh Network Communication Radio Mesh Wifi Repeater Wave Wireless Portal Radios

$25,331.50 USD
$31,664.38 USD $25,331.50 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Brand Name: XINGKAITECH

Hign-concerned Chemical: None

Model Number: COFDM Broadband MIMO Wifi Commander Radio XK-F357

Origin: Mainland China

color: black

Long Range Drone Definition Transmitter Wireless Mesh Network Communication Radio Mesh Wifi Repeater Wave Wireless Portal Radios


The broadband mimo mesh networking XK-F357 is a mobile broadband multimedia communication system designed with the new concept of “wireless grid network”.The system with powerful functions and excellent performance; All nodes can realize real-time interaction of multi-channel voice, data, image and other multimedia information by adopting distributed network architecture without central AD hoc network under the condition of non-line-of-sight and fast movement. Supports any network topology, such as point-to-point, point-to-multipoint, chain-like relay, mesh network and hybrid dynamic topology. The network adopts the same frequency networking and multi-hop relay. Each node device can move quickly and randomly, and the network topology can be changed and updated quickly without affecting the network transmission. The whole network is convenient to deploy, flexible to use, simple to operate and easy to maintain. It can provide users with reliable, timely, efficient and secure full IP clear voice, broadband data, high-definition video and visual command and scheduling and other multimedia integrated services under complex application scenarios such as fast movement and non-line-of-sight shielding. The broadband self-organizing network can be widely used in the military, public security, armed police, fire protection, civil air defense, electric power, petroleum, mining, transportation, water conservancy, forestry, radio and television, medical, water and air communications and other sectors, providing users with reliable, timely, Rich integrated services such as safe and efficient voice, data, video and visual command and dispatch can meet users’wireless broadband communication needs in normal or emergency situations to the greatest extent, and truly achieve “anytime, anywhere on demand”.


Performance:

Mesh network(self-forming,self-healing,self-adapting),high-speed throughput

Non-visual urban construction jungle multi-path transmission terrain,effective connection

High-speed movement of ground,water and air,effective connection

Multiple antenna settings,omni directional,high gain orientation or mixing

GPS and Multicast Support


Advantages:

Increased 4.5 times coverage in densely populated areas

The same communication range and transmission volume,reducing transmission power by 10 times

Increase the distance by 2 times in the visible limit environment

Increase 2-4 times transmission rate


Significant applications in Non Line of Sight /Multi path Fading environments, video/data/voice

critical communications:

Robot/Unmanned Vehicle,Reconnaissance/Surveillance/Anti-Terrorism/Monitoring

Air-to-air&air-to-ground&ground-to-ground,public safety/special operations

Urban network,emergency support/normal patrol/traffic management

Inside and outside the building,firefighting/rescue and disaster relief/forest/civil air defense/earthquake

TV broadcast wireless audio/video/live broadcast

Marine communication/high speed transmission on the opposite side of the ship

Low deck wireless network/ship landing

Mine/tunnel/basement connection

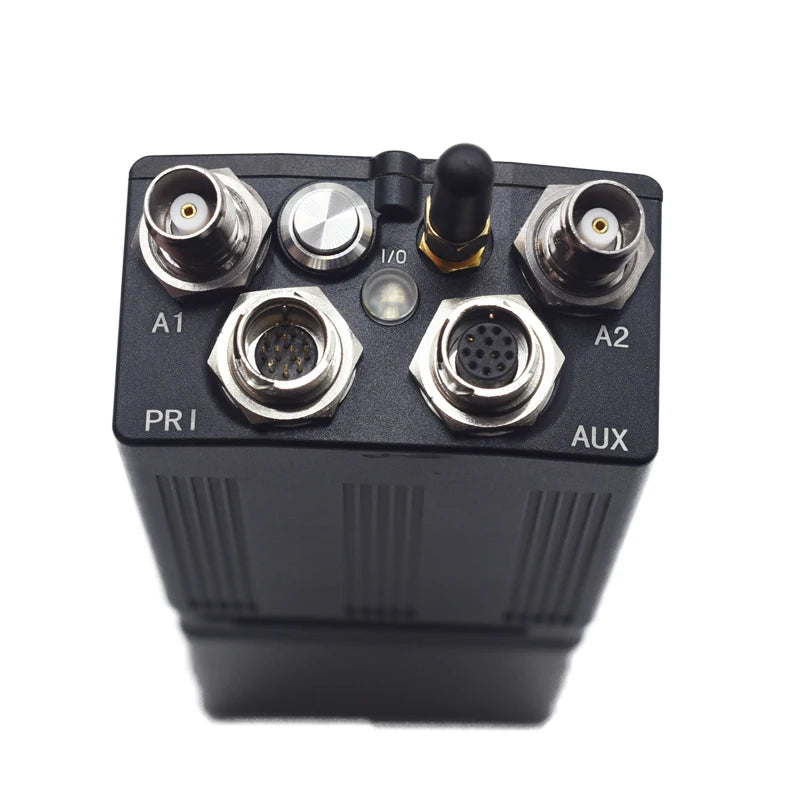

Heldhand Radio Hardware Interfaces


Technical parameters

Waveform

Mobile Network MIMO

MIMO Technology

Spatial multiplexing,Space-time coding;Diversity,TX /RX beam forming

Receive Sensitivity

-103dBm@5MHz BW

Channel Bandwidth

2.5/5/10/20MHz ,40MHz optional

Data Rate

1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS

Modulation Mode

TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM adaptive

RF Output Power

2Watts×2/5Watts×2 (Handheld/Airborne/Module)

Single Hop Communication Distance

100-300 KM (visible), 1-30 KM (urban area)

Mode

Point-to-point/Point-to-multi point/Multi point-to-multi point,Automatic relay,
Star/Line/Network/Hybrid

Single Hop Delay

Average 10ms(20MHz BW)

Encryption

DES, AES128/256,Chip /TF card encryption customized

Anti-interference Mode

Manual spectrum scanning channel selection, Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional

Local/Remote Management

Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, GPS/Beidou electronic map, temperature/voltage/interference Monitoring, software upgrade

Others

The startup time is less than 30 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system and the number of hops in Mesh networks. The total bandwidth loss of multiple hops is less than 30%.Automatic carrier tracking, support over 800 km/h mobile communication

Bands

BAND

Frequency range (MHz)

UHF

350-700

L Band

1000-1500

MIIT

336-344/512-582/566-626/606-678/1420-1520/1430-1444

S Band

1800-2500

Lower C Band

4400-5000

Upper C Band

5100-6000

Environmental

Operation Temperature

-40ºC  ~+80ºC

Protection Level

IP66,IP67/IP68 Customized

Mechanical

Size/Weight

19x6.8x3.8cm/0.769kg(with 11.1V/6.8AH battery Handheld Radio)
22x6.8x3.8cm/0.982kg(with 11.1V/10.2AH battery Handheld Radio)
22.9x18.9x6.2cm/3.86kg(with 22.2V/9.6AH battery Backpack Radio)
31.4x18.9x6.2cm/4.95kg(with 14.8/28.8AH battery Backpack Radio)

Installation/Color

4 Mounting Holes/Black,Lron Gray,Army Green Optional

Power

Supply Voltage

9-24VDC (2Watts×2 Handheld/Airborne/Module)/

Power consumption

Operation 1-2A/Standby 0.4-0.6A@12V(2Watts×2 Handheld/Airborne/Module)

Power Selection

Power Supply by Twist-Lock Battery or Main Cable

Batteries

10/8 hours for 10.2/6.8AH (Handheld Radio)
12/8 hours for 28.8/9.6AH (Backpack Radio) polymer lithium battery

Interface

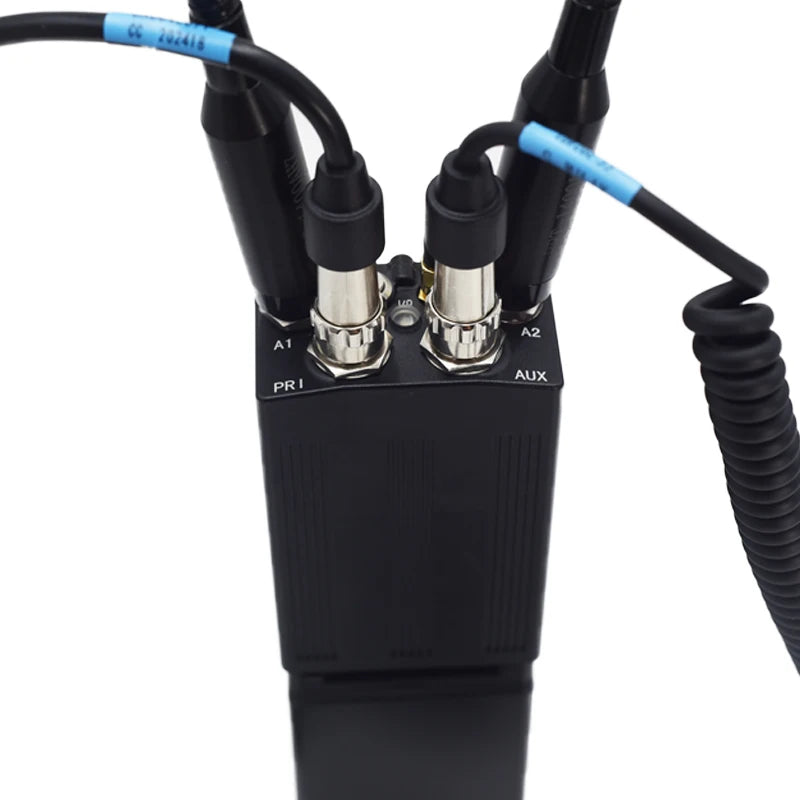

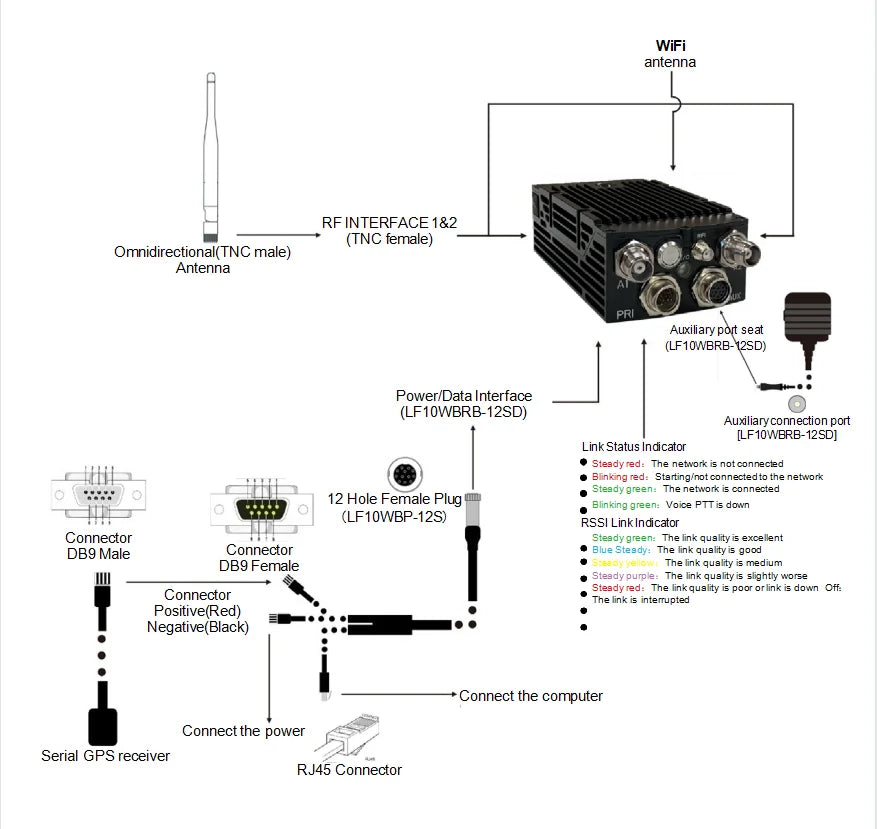

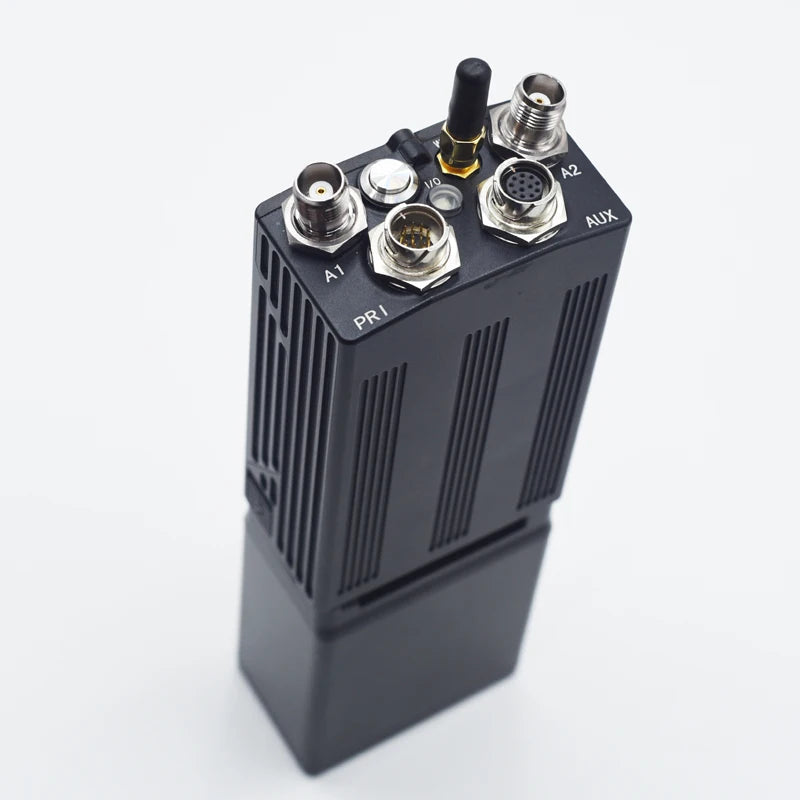

Basic interface

RF 2xTNC,1-2xRJ45 Ethernet 10/100BaseT,WiFi AP,
1xRS232-485-422-USB-Bluetooth/1.2-230.4Kbps,DC Input

Push to talk/Auxiliary interface

MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG

Network Extension
Optional

Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

Video Extension
Optional

Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1

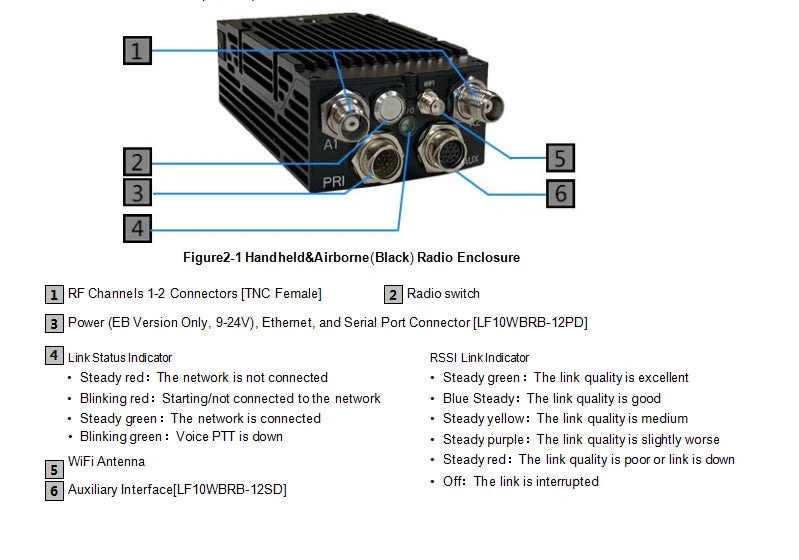

Link Status Indicator

Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Voice PTT is down

RSSI Link Indicator

Steady green - The link quality is excellent
Blue Steady - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor or link is down

Management Interface/Control Interface

Web-based network management/GUI, API secondary development interface/SNMP

OEM

Size/Weight

10.1x5.4x1.9cm/123.5g

RF

SMP
